DINKONDA GLOBAL Power Plants Special GDL Vertical Multi-stage Booster Pump Pipeline Centrifugal Pump Circulating Water Pump
Product Overview
The GDL vertical multi-stage pipeline centrifugal pump is a vertical multi-stage booster pump developed and manufactured by DINKONDA GLOBAL. It adopts a compact vertical structure, stainless steel multi-stage overcurrent components, and the motor is directly connected to the pump body. The inlet and outlet flanges are located at the lower end of the pump body and can be directly installed in series in the pipeline system. This pump has the characteristics of high head, small footprint, and light overall weight. It is mainly used for high-rise building water supply, factory circulating water replenishment, water treatment, boiler water supply, HVAC pressurization, and other working conditions to transport clean and particle free cold and hot water.
Structural Composition
1. Vertical drive motor
Standard three-phase vertical motor, shell heat dissipation rib structure, side junction box, top heat dissipation fan cover; Explosion proof and variable frequency motors can be selected as needed, with a protection level of IP55 and stable operation.
2. Pump head assembly
Multi stage stainless steel impellers and water guide shells are stacked step by step to achieve multi-stage pressurization of the medium; The overcurrent components are made of stainless steel material, which is corrosion-resistant and does not cause secondary pollution to the water quality.
3. Mechanical seal components
Hard alloy mechanical seal, temperature resistant and wear-resistant, effectively preventing medium leakage outward.
4. Pump shaft and tightening bolt
Stainless steel pump shaft, with multiple external tension rods to lock each level of pump casing, high coaxiality and low vibration of the whole machine.
5. Inlet and outlet flange
Bottom coaxial inlet and outlet flange, pipeline layout, inlet and outlet on the same axis, simple pipeline connection.
6. Base support seat
Cast iron base, with reserved anchor bolt holes, can be installed by hanging pipes or fixed on the ground.
Product Features
1. Vertical multi-stage high lift
Multi stage impeller series boosting achieves high head at medium flow rates, meeting the needs of high-rise water supply and high-pressure water replenishment.
2. Stainless steel overcurrent components
The overcurrent part is made of stainless steel material, which is not easy to rust and ensures clean water quality during transportation. It is suitable for domestic water supply.
3. Pipeline installation, small footprint
Vertical structure, compact size, can directly connect pipelines in series, without the need for a large pump room space.
4. Low operating noise and minimal vibration
The whole machine is coaxial and directly connected, and the rotor has undergone dynamic balance verification, ensuring smooth operation and suitable for building and office pump rooms.
5. Convenient maintenance
Vertical modular structure, the seal and internal impeller can be inspected by disconnecting the upper connection, making disassembly and assembly simple.

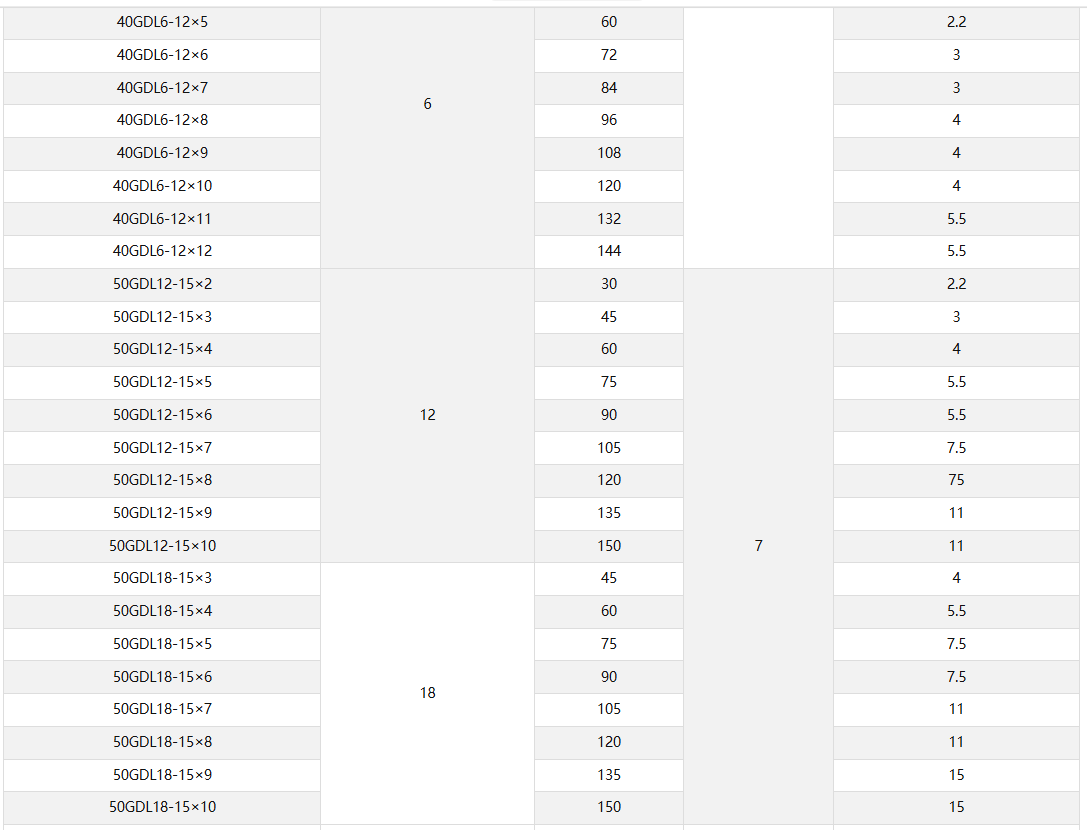

Technical Parameters
FAQ:
Q1.What about the lead time?
A: 5-7 days for Sample preparing ,15-20 working days for mass production.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Company Profile
DINKONDA GLOBAL has been developing and supplying equipment and components for specialized thermal power plants and related industries for 20 years and is one of the a market-leading global manufacturers and providers in the industry. We have a professional technical research and development team, professional management talents and dozens of quality inspection personnel. The company has more than 50 CNC machining centers, CNC lathes, various inspection equipment and other professional equipments.
Our comprehensive product portfolio and over 20 years of industry knowledge mean customers can rely on us to deliver innovative, reliable and economic products. Chenglei products are designed and manufactured with quality components and clear user interfaces for quick and safe operation in the field. Our strict product development and testing ensures long-lasting performance and continued reliability. Our independently developed and produced CL series valve electric actuators are widely used in various industries such as Oil & Gas, Water & Power, and Chemical, Process & Industrial .
Customers rely on us for innovative, high quality and dependable products for managing the flow of liquids, gases and powders. We help customers around the world to reduce emissions, improve efficiency, minimize their environmental impact and assure safety.
Product Tags:
|
|
IP67 Centrifugal Circulating Water Vertical Inline Multistage Pump Booster For Power Plants Images
|
